How to Evaluate E-Bike Manufacturing Quality: A B2B Buyer's Technical Guide

E-bike quality directly determines product return rates, warranty costs, and brand reputation. For B2B buyers, a single quality failure in mass production can translate to thousands of defective units, six-figure warranty claims, and irreversible damage to customer relationships.

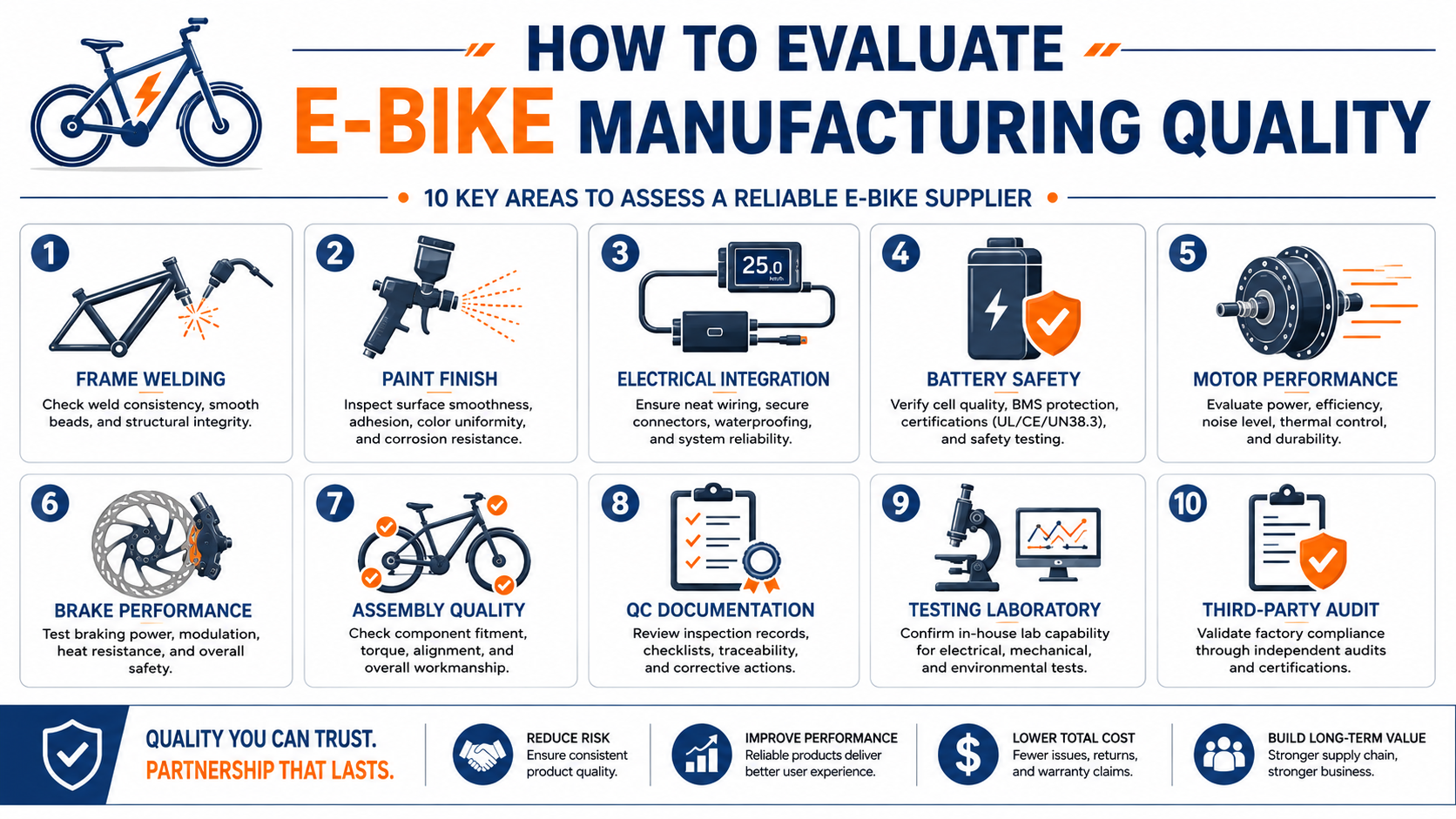

This technical guide provides a 10-point evaluation framework that B2B buyers can use to assess e-bike manufacturing quality — during factory audits, sample evaluation, and mass production inspection — with specific attention to quality standards across multi-country production bases.

1. Frame Welding Quality

Frame welding is the foundation of e-bike structural integrity. Poor welding leads to frame failure — one of the most dangerous and costly defect types.

What to inspect:

• Weld bead uniformity: Consistent bead width and height along all joints. No undercut, overlap, or porosity.

• Weld penetration: Full penetration at critical joints (head tube, bottom bracket, seat tube). Request cross-section macro photos if available.

• Heat-affected zone (HAZ): Minimal discoloration indicates controlled heat input. Excessive HAZ weakens the frame.

• CNC welding vs. manual: CNC-controlled welding provides consistent quality. Manual welding quality varies by operator skill.

Test method: Request fatigue test reports per EN 14766 (mountain bikes) or EN 14764 (city bikes). The frame must withstand 100,000 cycles of vertical loading without failure.

Three-chain welding capability: At Cybic's Tianjin facility, frame welding is performed by CNC welding robots on all 4 production lines, with 100% visual inspection and batch fatigue testing in the in-house laboratory. The Jakarta facility also operates local frame welding capabilities as part of its complete local supply chain — ensuring that Indonesia-produced frames meet the same structural standards as Tianjin-produced frames.

2. Paint and Surface Finish

Paint quality affects both aesthetics and corrosion resistance. E-bikes exposed to rain, humidity, and road salt require durable surface treatment.

What to inspect:

• Surface preparation: Phosphating or chromating before paint application ensures adhesion.

• Coating layers: Minimum 3 layers — primer, base coat, clear coat. Measure total thickness (80-120 microns recommended).

• Coverage: Paint must reach all internal surfaces, including tube interiors (corrosion prevention).

• Decal adhesion: Decals must be under the clear coat, not applied on top (which peels).

Test method: Salt spray test per ISO 9227 — minimum 48 hours without red rust. Cross-cut adhesion test per ISO 2409 — rating 0 or 1.

3. Electrical System Integration

E-bike electrical systems — motor, controller, battery, display, wiring harness — must be integrated with mechanical components as a complete system. Poor integration causes intermittent failures that are difficult to diagnose and expensive to repair.

What to inspect:

• Wiring routing: Cables must be internally routed or protected by housing. No pinching at steering or suspension pivot points.

• Connector quality: Waterproof connectors (IP65 minimum) at all electrical junctions. No exposed terminals.

• Controller placement: Protected from impact and water ingress. Heat dissipation must be adequate.

• Grounding: Proper grounding prevents electrical interference with motor sensors.

Test method: IP rating test (water spray, dust). Vibration test on complete e-bike with electrical system active. Check for error codes or connectivity loss during testing.

4. Battery Safety and BMS Quality

Battery systems are the highest-cost component and the highest-risk component. Battery fires, while rare, can result in product recalls, legal liability, and brand destruction.

What to inspect:

• Cell brand and quality: Samsung, LG, or certified Chinese brands (BAK, Lishen). Request cell specification sheets.

• BMS (Battery Management System): Must include overcharge protection, over-discharge protection, short circuit protection, temperature monitoring, and cell balancing.

• Pack construction: Cells must be spot-welded (not soldered) to nickel strips. Insulating sheets between cell rows.

• Enclosure: Flame-retardant material (UL 94 V-0 rated). Waterproof sealing (IP65 minimum).

• Certification: UN38.3 test report mandatory. UL 2054 or IEC 62133-2 recommended for US/EU markets.

Test method: Request UN38.3 test report. Perform charge/discharge cycle test on sample units. Thermal imaging during fast charge to check for hot spots.

Cybic's battery packs use Samsung/LG cells (or BAK/Lishen for budget models), with BMS boards providing 5-layer protection. All packs carry UN38.3, RoHS, and CE certifications. Battery assembly is done in a dedicated clean-room facility.

5. Motor Performance and Reliability

Motor quality determines performance consistency, range, and long-term reliability. Hub motors and mid-drive motors have different evaluation criteria.

What to inspect:

• Motor brand verification: Cybic uses Bafang, Ananda, Shengyi, and Vinka motors — all established brands with proven reliability records. Request motor specification sheets and brand verification.

• Hub motors: Check bearing quality, seal integrity, and torque output consistency across assistance levels.

• Mid-drive motors: Check gear engagement smoothness, chain line alignment, and torque sensor accuracy.

• Noise: Maximum 55 dB at 20 km/h. Excessive noise indicates bearing or gear issues.

• Temperature: Motor housing temperature should not exceed 60°C after 1 hour of continuous operation at full load.

Test method: Dynamometer test for torque output and efficiency. Noise test in anechoic chamber. Thermal test with continuous full-load operation.

6. Brake Performance

Brakes are the most critical safety component. E-bikes are heavier and faster than standard bicycles — brake performance requirements are correspondingly higher.

What to inspect:

• Brake type: Hydraulic disc brakes (Tektro, Shimano) recommended for all e-bikes. Mechanical disc acceptable for budget models. Rim brakes not recommended for e-bikes.

• Rotor size: Minimum 160mm for city e-bikes, 180mm for cargo and fat tire models.

• Stopping distance: Per EN 15194, e-bike must stop within 6 meters from 24 km/h.

Test method: Stopping distance test per EN 15194. Repeated braking test (10 consecutive emergency stops) to check for brake fade.

7. Assembly Quality

Assembly quality is where manufacturing discipline becomes visible. Even with good components, poor assembly creates quality issues.

What to inspect:

• Torque marks: All critical bolts (stem, seat post, brake caliper, motor mount) should have torque mark paint — indicating that proper torque was applied and verified.

• Cable housing length: Appropriate length — not too long (interference) or too short (restriction when steering).

• Wheel trueness: Lateral and radial runout within 1mm. Spoke tension consistent (measured with tensiometer).

• Component alignment: Handlebar straight, saddle level, wheel alignment within 2mm.

8. Quality Control Documentation

A manufacturer's QC documentation reveals their quality culture. This is particularly important when evaluating multi-country production — the quality standard must be unified across all bases.

Request to see:

• Incoming inspection records: Material and component verification logs

• In-line QC checklists: Station-level quality checkpoints with pass/fail criteria

• Final inspection reports: Pre-shipment AQL sampling results

• Defect tracking: Non-conformance reports (NCR) and corrective action records (CAPA)

• Yield rate data: First-pass yield percentage by model and production line

Benchmark: First-pass yield rate above 97% indicates a mature quality system. Below 95% suggests systemic quality issues.

Three-chain quality standard: Cybic maintains a unified 98.5% first-pass yield rate standard across all three production bases — Tianjin, Jakarta, and Brno. The same 7-step QC process, the same documentation requirements, and the same online remote monitoring system (which detects battery and motor faults for immediate repair) apply regardless of production location. When auditing a multi-country manufacturer, verify that quality standards are documented and enforced consistently across all facilities — not just the headquarters plant.

9. Testing Laboratory Capabilities

Manufacturers with in-house testing laboratories can detect quality issues before shipment — rather than discovering them in the field. Evaluate:

• Fatigue testing: Frame, fork, and handlebar fatigue test equipment

• Impact testing: Drop test and collision test per EN standards

• Environmental testing: Temperature cycling, humidity, UV exposure

• Electrical safety: Dielectric strength, ground continuity, insulation resistance testers

• Performance test: On-site test track for functional validation

Cybic's testing infrastructure: The Tianjin facility operates an in-house testing laboratory with full fatigue, impact, environmental, and electrical safety testing capabilities. For specialized testing requirements, Cybic also partners with national testing laboratory centers for accredited third-party verification. Manufacturers without in-house testing rely on external labs — which means quality issues are discovered later and at higher cost.

10. Third-Party Audit History

Manufacturers that welcome third-party audits demonstrate confidence in their quality systems. Request:

• Audit reports from SGS, Intertek, Bureau Veritas, or client quality teams

• ISO 9001:2015 certificate and latest audit report

• BSCI or SMETA social compliance audit results

• Any previous product recall or corrective action documentation

Red flag: Manufacturers that resist third-party audits or refuse to share audit reports may have quality issues they want to hide.

Quality Evaluation Summary Checklist

Evaluating e-bike manufacturing partners? Schedule a factory audit at any of Cybic's three production bases — Tianjin (China), Jakarta (Indonesia), or Brno (Czech Republic). Tour our production lines, testing laboratory, and QC stations. Our quality team will walk you through the complete 7-step QC process and demonstrate how unified quality standards are maintained across all facilities.
